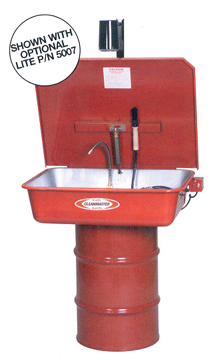

Heavy-Duty Solvent Parts Washers

KT1316 and KT1330

These parts washers offer one of the deepest drawn tanks in the industry. Designed for convenient cleaning of large parts.

Features:

• UL-CSA Approved heavy duty 110 volt 60 Hz pump
• Dual cleaning system. Use flexible metal spigot or the heavy-duty flo-thru brush.
• Drain filter system. Designed for easy cleaning.
• Spring loaded lid closure with "fire link".
• Bottom design of washer allows all fluid to flow to filter system.
• Tank design features heavy-duty galvanized steel.
• Filter system mounting brackets.
• Electrostatic paint for strong reliable finish.
• Formed rolled edges for added safety.
• Overlapping cover design to reduce evaporation when parts washer is not being used.
• CSA and NRTL/C Approved.

Specifications	Industrial Grade		Economy Grade
Model	KT1316	KT1330	KT1216	KT1230
Tank Depth	9 in.	9 in.	8 in.	8 in.
Tank Length	31 in.	35 in.	28 in.	32 in.
Tank Width	21 in.	27 in.	16 in.	20 in.
Overall Height	55-1/2 in.	62-1/2 in.	N/A	N/A
Shipping Weight	58 lb.	72 lb.	55 lb.	65 lb.
Optional Drum Part. No.	P/N 7032	P/N 7033	P/N 7032	P/N 7033
Optional Lite Part. No.	P/N 5007	P/N 5007	P/N 5001	P/N 5001
