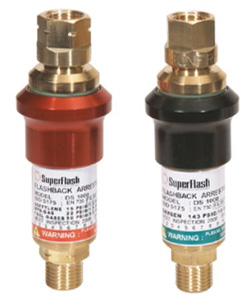

The DS-1000 and DS-2000 are top of the line flashback arrestors that easily mount onto most regulators or supply points, and have a resettable pressure control valve that cuts off gas supply in the event of a flashback or reverse gas flow. Resetting is simple - just pull up on the pressure control knob. No disassembly or special tools required. The DS-2000 features high gas flow capacity, built in 100 micron inlet screen, reverse flow check valve, flame barrier, and thermal shut off.


            DS-1000
| Type of Gas | Inlet | Outlet | Part No. |
| Fuel Gas (LH) | 9/16" UNF1 F | 9/16" UNF1 M | 0701-3600 |
| Oxygen (RH) | 9/16" UNF1 F | 9/16" UNF1 M | 0701-3601 |
| Inlet Pressure PSIG** | Airflow FT3 / H |
| 7.3 | 126.0 |
| 14.5 | 223.0 |
| 21.8 | 311.0 |
| 36.3 | 491.0 |
| 72.7 | 1004.0 |
DS-2000
| Type of Gas | Inlet | Outlet | Part No. |
| Fuel Gas (LH) | 9/16" UNF1 F | 9/16" UNF1 M | 0701-3905 |
| Oxygen (RH) | 9/16" UNF1 F | 9/16" UNF1 M | 0701-3907 |
| Inlet Pressure PSIG** | Airflow FT3 / H |
| 7.3 | 231.0 |
| 14.5 | 465.0 |
| 21.8 | 725.0 |
| 36.3 | 1041.0 |
| 72.7 | 1933.0 |
1 CGA Class "B" Connection
** PSIG = pounds per square inch gauge
